Multi-Architecture Support with Karpenter

Modern cloud workloads often benefit from different CPU architectures. In this module, we'll explore how Karpenter can manage mixed-architecture environments, specifically focusing on ARM64 support alongside traditional AMD64 (x86_64) nodes.

Introduction to ARM64 on Azure

ARM64-based VMs on Azure offer several advantages, such as a up-to 50% better price-to-performance ratio for many workloads as well as improved energy efficiency (lower carbon footprint). Because of their ability to scale workloads efficiently, Arm64 VMs are well-suited for web or application servers, open-source databases, cloud-native applications, gaming servers, and other high traffic applications. Furthermore, the switch to ARM64 is straightforward for many workloads, it should thus be encouraged as a simple path towards further cost optimization.

With the support of multi-architecture images in Azure Container Registry, a single image name, with a version tagged for each architecture, can be used throughout your cluster running both types of nodes. The arm64 version is automatically pulled if the underlying node is arm64-based, and vice versa for amd64 nodes.

Azure offers ARM64-based VMs in several families, including the D-series machines we'll use in this module.

Prerequisites

Before beginning, ensure you have:

  1. A running AKS cluster with Karpenter/NAP enabled
  2. The workshop namespace created

Exercise 1: Configuring ARM64 Support in NodePools

To allow Karpenter to provision ARM64 nodes, we need to update our NodePool configuration to include ARM64 as an allowed architecture.

Step 1: Create a NodePool with ARM64 Support

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
cat <<EOF | kubectl apply -f -
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default-demo
  annotations:
    kubernetes.io/description: "Basic NodePool for generic workloads"
spec:
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 5s
    budgets:
      - nodes: 100%
  limits:
    cpu: "100"
  template:
    metadata:
      labels:
        # required for Karpenter to predict overhead from cilium DaemonSet
        kubernetes.azure.com/ebpf-dataplane: cilium
        aks-karpenter: demo
    spec:
      expireAfter: Never
      startupTaints:
        # https://karpenter.sh/docs/concepts/nodepools/#cilium-startup-taint
        - key: node.cilium.io/agent-not-ready
          effect: NoExecute
          value: "true"
      requirements:
        - key: karpenter.azure.com/sku-family
          operator: In
          values: [D]
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64", "arm64"]
        - key: kubernetes.io/os
          operator: In
          values: ["linux"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand"]
        - key: karpenter.azure.com/sku-cpu
          operator: Lt
          values: ["5"]
      nodeClassRef:
        group: karpenter.azure.com
        kind: AKSNodeClass
        name: default-demo
---
apiVersion: karpenter.azure.com/v1alpha2
kind: AKSNodeClass
metadata:
  name: default-demo
  annotations:
    kubernetes.io/description: "Basic AKSNodeClass for running Ubuntu2204 nodes"
spec:
  imageFamily: Ubuntu2204
  osDiskSizeGB: 100
EOF

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
$yamlContent = @"
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default-demo
  annotations:
    kubernetes.io/description: "Basic NodePool for generic workloads"
spec:
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 5s
    budgets:
      - nodes: 100%
  limits:
    cpu: "100"
  template:
    metadata:
      labels:
        # required for Karpenter to predict overhead from cilium DaemonSet
        kubernetes.azure.com/ebpf-dataplane: cilium
        aks-karpenter: demo
    spec:
      expireAfter: Never
      startupTaints:
        # https://karpenter.sh/docs/concepts/nodepools/#cilium-startup-taint
        - key: node.cilium.io/agent-not-ready
          effect: NoExecute
          value: "true"
      requirements:
        - key: karpenter.azure.com/sku-family
          operator: In
          values: [D]
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64", "arm64"]
        - key: kubernetes.io/os
          operator: In
          values: ["linux"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand"]
        - key: karpenter.azure.com/sku-cpu
          operator: Lt
          values: ["5"]
      nodeClassRef:
        group: karpenter.azure.com
        kind: AKSNodeClass
        name: default-demo
---
apiVersion: karpenter.azure.com/v1alpha2
kind: AKSNodeClass
metadata:
  name: default-demo
  annotations:
    kubernetes.io/description: "Basic AKSNodeClass for running Ubuntu2204 nodes"
spec:
  imageFamily: Ubuntu2204
  osDiskSizeGB: 100
"@

$yamlContent | kubectl apply -f -

Key changes to note:

  • Changed from B-series to D-series VMs (karpenter.azure.com/sku-family: D), as ARM64 is not available in B-series
  • Added "arm64" to the allowed architectures (kubernetes.io/arch)

For the purpose of this module, we also limit the size of the created VMs to 4CPU maximum and use 4 replicas, this will allow comparisons across different configurations throughout the next exercises.

Step 2: Deploy a Workload Explicitly Requesting ARM64

Now, let's deploy a workload that specifically requests ARM64 nodes:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: inflate
  namespace: workshop
spec:
  replicas: 4
  selector:
    matchLabels:
      app: inflate
  template:
    metadata:
      labels:
        app: inflate
    spec:
      terminationGracePeriodSeconds: 0
      containers:
        - name: inflate
          image: karpenterossazuredemo.azurecr.io/pause:3.7
          resources:
            requests:
              cpu: 1
      nodeSelector:
        aks-karpenter: demo
        kubernetes.io/arch: arm64
EOF

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
$yamlContent = @"
apiVersion: apps/v1
kind: Deployment
metadata:
  name: inflate
  namespace: workshop
spec:
  replicas: 4
  selector:
    matchLabels:
      app: inflate
  template:
    metadata:
      labels:
        app: inflate
    spec:
      terminationGracePeriodSeconds: 0
      containers:
        - name: inflate
          image: karpenterossazuredemo.azurecr.io/pause:3.7
          resources:
            requests:
              cpu: 1
      nodeSelector:
        aks-karpenter: demo
        kubernetes.io/arch: arm64
"@

$yamlContent | kubectl apply -f -

The key part of this configuration is the nodeSelector that explicitly requests ARM64 nodes:

1
2
nodeSelector:
  kubernetes.io/arch: arm64

As long as an existing nodepool that allows arm64 nodes is available - so far as it respects the other requirements of the deployment such as the node label - the pods from this deployment will be hosted on arm64 hosts and will remain pending otherwise. Let's verify that in the next step.

Step 3: Observe ARM64 Node Provisioning

Verify that new a new NodeClaim is created and that the architecture of the node, once created, is ARM64.

1
2
3
kubectl get nodeclaims

kubectl get nodes -l aks-karpenter=demo -o custom-columns=NAME:.metadata.name,ARCH:.metadata.labels.kubernetes\\.io/arch
Self Hosted Karpenter only

Monitor the Karpenter logs to see consolidation in action:

1
kubectl logs -n karpenter -l app.kubernetes.io/name=karpenter --all-containers --since=3m --tail=-1 -f | grep -v "finished call"

You should see Karpenter creating ARM64 nodes, with logs similar to:

1
2
3
4
5
6
{"level":"INFO","time":"2025-04-30T09:05:58.528Z","logger":"controller","message":"found provisionable pod(s)","commit":"0f1aca1","controller":"provisioner","namespace":"","name":"","reconcileID":"89df6d1a-5b9f-4c9e-b384-10c9397166e2","Pods":"workshop/inflate-644fc55c75-zcd2f, workshop/inflate-644fc55c75-kvhm2, workshop/inflate-644fc55c75-xmz4d, workshop/inflate-644fc55c75-rx55v","duration":"17.375028ms"}
{"level":"INFO","time":"2025-04-30T09:05:58.528Z","logger":"controller","message":"computed new nodeclaim(s) to fit pod(s)","commit":"0f1aca1","controller":"provisioner","namespace":"","name":"","reconcileID":"89df6d1a-5b9f-4c9e-b384-10c9397166e2","nodeclaims":2,"pods":4}
{"level":"INFO","time":"2025-04-30T09:05:58.543Z","logger":"controller","message":"created nodeclaim","commit":"0f1aca1","controller":"provisioner","namespace":"","name":"","reconcileID":"89df6d1a-5b9f-4c9e-b384-10c9397166e2","NodePool":{"name":"default-demo"},"NodeClaim":{"name":"default-demo-474w8"},"requests":{"cpu":"1350m","memory":"570Mi","pods":"7"},"instance-types":"Standard_D2pds_v5, Standard_D2pds_v6, Standard_D2plds_v5, Standard_D2plds_v6, Standard_D2pls_v5 and 11 other(s)"}
{"level":"INFO","time":"2025-04-30T09:05:58.546Z","logger":"controller","message":"created nodeclaim","commit":"0f1aca1","controller":"provisioner","namespace":"","name":"","reconcileID":"89df6d1a-5b9f-4c9e-b384-10c9397166e2","NodePool":{"name":"default-demo"},"NodeClaim":{"name":"default-demo-gqwd5"},"requests":{"cpu":"3350m","memory":"570Mi","pods":"9"},"instance-types":"Standard_D4pds_v5, Standard_D4pds_v6, Standard_D4plds_v5, Standard_D4plds_v6, Standard_D4pls_v5 and 3 other(s)"}
{"level":"info","ts":1746003958.5657442,"logger":"fallback","caller":"instance/instance.go:650","msg":"Selected instance type Standard_D4pls_v6"}
{"level":"info","ts":1746003959.6019342,"logger":"fallback","caller":"instance/instance.go:650","msg":"Selected instance type Standard_D2pls_v6"}
The beginning is similar to what you have already seen, Karpenter identified provisionable pods in need of a node, but this time it creates ARM64 nodes (note the p in the instance type).

Using aks-node-viewer, you can see the price of your deployment.

1
aks-node-viewer --node-selector aks-karpenter=demo --resources cpu

Below is an example of the output the time of this workshop, in a sample subscription.

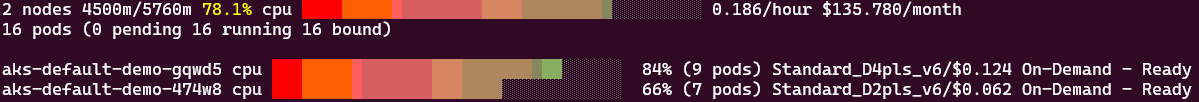

AKS Node Viewer with ARM64 Nodes

For comparison's sake, after updating the deployment to run on AMD64 nodes (Karpenter then recognizes the Drift and automatically creates AMD64 nodes), this is what aks-node-viewer shows:

AKS Node Viewer with AMD64 Nodes

As you can see there is a clear price difference between hosting workloads on ARM64 vs AMD64, in this specific example ~27% reduction.

Best Practices for Multi-Architecture Deployments

To summarize:

  1. Use multi-architecture container images: Ensure your container images support both amd64 and arm64 architectures.

  2. Test workloads on both architectures: Some workloads may perform differently on ARM vs x86.

  3. Consider using NodePools with mixed architecture support: This gives Karpenter flexibility to choose the most appropriate architecture.

  4. Use explicit nodeSelectors for architecture-specific workloads: When needed, explicitly request a specific architecture.

  5. Monitor performance and cost metrics: Track the performance and cost differences between architectures.

Use Cases for ARM64 Nodes

ARM64 nodes are particularly well-suited for:

  1. Web services and APIs: Often more cost-effective for serving HTTP traffic

  2. Containerized microservices: Good performance for general containerized workloads

  3. CI/CD pipelines: Can reduce costs for build and test workloads that run frequently

  4. Cost-sensitive batch processing: For non-time-critical batch processing

  5. Machine learning inference: Some ML inference workloads are optimized for ARM

Cleanup

Before moving to the next module, clean up your resources:

1
2
kubectl delete deployment -n workshop inflate
kubectl delete nodepool default-demo

Conclusion

In this module, you've learned how to leverage ARM64 architecture alongside traditional AMD64 nodes using Karpenter. Key takeaways include:

  • How to configure NodePools to support ARM64 nodes
  • Deploying workloads that specifically target ARM64 architecture
  • Best practices for managing multi-architecture deployments

By intelligently selecting the right architecture for each workload, you can achieve a better balance of performance and cost efficiency.

In the next module, we'll explore how to use Karpenter's spot instance capabilities to further optimize costs.
